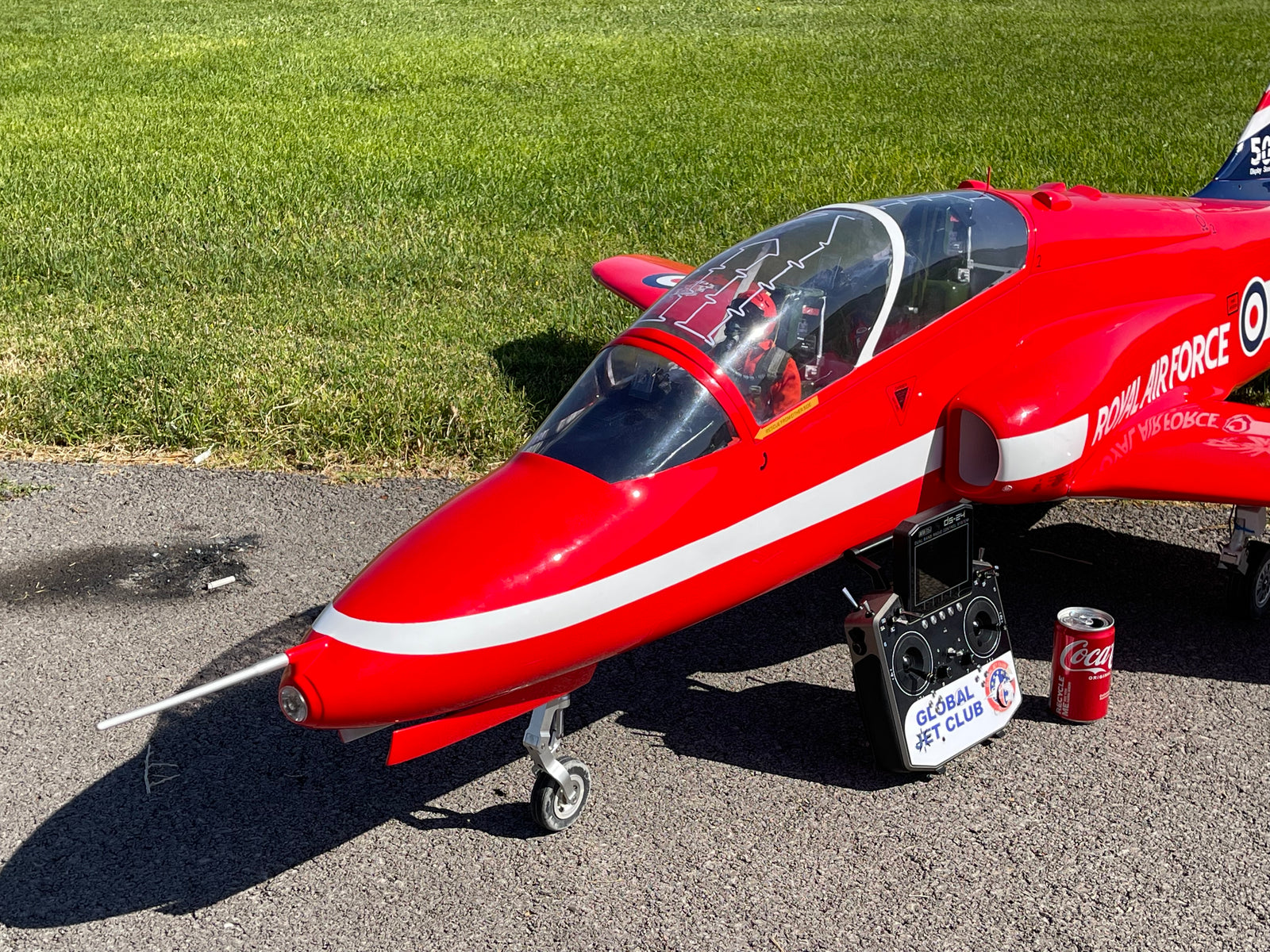

Aerojet Hawk 2.2M Building Log

This is our latest introduction of a scale jet in our Aerojet Collection.

GJC BAE Hawk Control Setup & Cg
BAE Hawk Control Setup & Cg
Recommended BAE Hawk - As Built
Aileron 18 mm H – 24 mm L – 18 mm
Elevator 25 mm @ LE H – 35 mm M – 25 mm L – 20 mm
Rudder 30 mm H – 44 mm L – 0 mm
Flaps Full = 45 mm
Half = 25 mm Full – 50 mm 40 deg Half – 30 mm 20 deg
Cg 180 mm aft of wing LE
at fuselage, no fuel
215 mm aft of wing LE or 57 mm in front of the main gear,
no fuel, UAT full, gear down
Weight 15.5 kg, 34 lbs (Est) 28 lbs 2 oz No Fuel, UAT Full + empty smoke tank
Fuel 2 x 1500ml ( 101 oz) +
UAT 2 x 1500ml ( 101 oz) + 6 oz UA
