Aerojet Servo Packs

These are our latest high end servos designed for our Aerojet family.  They are sold as a pack with all servos you need to complete the servo installation.  They are also sold individually or as a PNP Servo Packages for our Aerojet Series ARF Pro Wired.

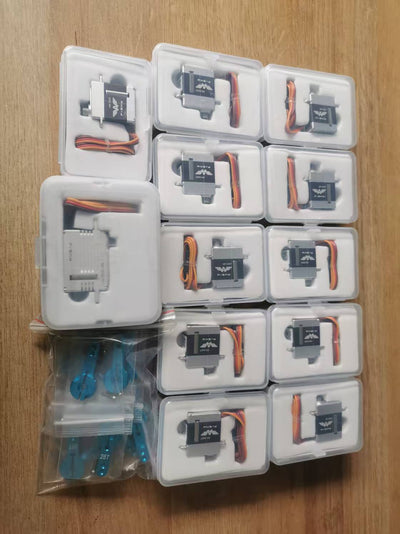

Servo packs are made up of Aerojet servos

  • Standard AW5405BLS   40*20*33.5(mm)    /  77.5g /  46-54 kgf.cm

  • Mini AW5312HV         35.5*15*25.3(mm) /  41g    /  20-28kgf.cm
  • Micro M5213H            23*12*27.5(mm)   /  21g    / 7.4-10.5 kgf.cm





MB339 Composite Servo Packs

Mini servos: AW5312H*7

Rudder *1, Flaps * 2, Ailerons *2,  Elevators *2

Micro servos: AW5213H*2

 Nose steering *1,Front  gear doors *1





BD5 1/2 2.3M Scale Servo Packs

Standard servos: AW5405BLS*8

Rudder *1, Flaps * 2, Ailerons *2, Elevators *2, Nose steering *1



F86F Standard Scale Servo Packs

Standard servos: AW5405BLS*10

Rudder *1, Flaps * 2, Ailerons *2, Speed brakes *2, Land gear doors *3

Mini servos: AW5312HV*3

Elevators *2, Nose steering *1



F86F Super Scale Servo Packs

Standard servos: AW5405BLS*11

Rudder *1, Flaps * 2, Ailerons *2, Speed brakes *2, Land gear doors *3, Operating Canopy*1

Mini servos: AW5312HV*3

Elevators *2, Nose steering *1



Hummingbird 1.8M Scale Servo Packs

Standard servos: AW5405BLS*5

Rudder*1, Flaps* 2, Ailerons*2

Mini servos: AW5312HV*3

Elevators*2, Nose steering*1



Dragon 1.8M Scale Servo Packs

Standard servos: AW5405BLS*7

Rudder*1, Flaps* 2, Ailerons*2, 3D controls *2

Mini servos: AW5312HV*3

Elevators*2, Nose steering*1



Viper 3.4M Scale Servo Packs

Standard servos: AW5405BLS*9

Rudder *1, Flaps * 2, Ailerons *2, Front gear doors *1, Elevators *2, Nose steering *1



Viper 2.3M Scale Servo Packs

Standard servos: AW5405BLS*8

Rudder *1, Flaps * 2, Ailerons *2, Elevators *2, Nose steering *1



Hawk 2.2M Scale Servo Packs

Standard servos: AW5405BLS*10

Rudder *1, Flaps * 2, Ailerons *2, Land gear doors *4, Elevators *1

Mini servos: AW5312HV*1

Nose steering *1



T-45 1/6 1.9M Scale Servo Packs

Standard servos: AW5405BLS*1

Elevators*1

Mini servos: AW5312HV*5

Rudder*1, Flaps* 2, Ailerons*2

Micro servos: M5213H *7 (Already Installed in ARF Pro Wired T-45)

Nose steering*1, Speed brakes* 2, Land gear doors*4



F16 1/6 2.5M Scale Servo Packs

Standard servos: AW5405BLS*8

Rudder*1, Ailerons*2, Land gear doors*3, Elevators*2

Mini servos: AW5312HV*1

Nose steering*1
