Aerojet Servo Packs

These are our latest high end servos designed for our Aerojet family.  They are sold as a pack with all servos you need to complete the servo installation.  They are also sold individually or as a PNP Servo Packages for our Aerojet Series ARF Pro Wired.



Servo packs are made up of Aerojet servos

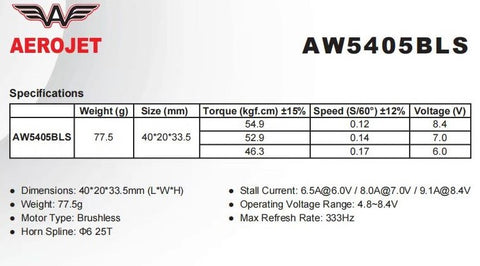

  • Standard AW5405BLS   40*20*33.5(mm)    /  77.5g /  46-54 kgf.cm

  • Mini AW5312HV         35.5*15*25.3(mm) /  41g    /  20-28kgf.cm
  • Micro M5213H            23*12*27.5(mm)   /  21g    / 7.4-10.5 kgf.cm



BD5 1/2 2.3M Scale Servo Packs

Standard servos:  8 x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Elevators = 2, Nose steering = 1



F16 1/6 2.5M Scale Servo Packs

Standard servos:  8x AW5405BLS

Rudder = 1, Ailerons = 2, Landing gear doors = 3, Elevators = 2

Mini servos:  1x AW5312HV

Nose steering = 1



F18F 1/8.5   Scale Servo Packs

Standard servos:  4x AW5405BLS

Flaps = 2, Elevators = 2

Mini servos:  8x AW5312HV

Nose steering =1 ,Landing gear doors = 3,Rudder = 2,Ailerons = 2





F86F Standard Scale Servo Packs

Standard servos:  10x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Speed brakes = 2, Landing gear doors = 3

Mini servos:  3x AW5312HV

Elevators = 2, Nose steering = 1



F86F Super Scale Servo Packs

Standard servos:  11x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Speed brakes = 2, Landing gear doors = 3, Operating Canopy= 1

Mini servos:  3x AW5312HV

Elevators = 2, Nose steering = 1



Hawk 2.2M Scale Servo Packs

Standard servos:  11x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Landing gear doors = 4, Elevators = 1,Speed Brack = 1

Mini servos:  1 x AW5312HV

Nose steering = 1



Hummingbird 1.8M Scale Servo Packs

Standard servos:  5x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2

Mini servos:  3x AW5312HV

Elevators = 2, Nose steering = 1



Dragon 1.8M Scale Servo Packs

Standard servos:  7x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, 3D controls = 2

Mini servos:  3x AW5312HV

Elevators = 2, Nose steering = 1



JF17/FC1 2.6M Sport Scale Servo Packs

Standard servos:  7x AW5405BLS

Nose steering = 1,Elevators = 2, Ailerons = 2, 3D controls = 2

Mini servos:  1x AW5312HV

Rudder = 1



L39 2.4MAlbatrossScale Servo Packs

Standard servos:  11 x AW5405BLS

Rudder =1, Flaps = 2, Ailerons = 2, , Elevators = 2, Hatch cover=2 ,Speed Brake=1,Nose steering=1

Mini servos:  3x AW5312HV

Landing gear doors = 3



MB339 Composite Servo Packs

Mini servos:  7 x AW5312H

Rudder = 1, Flaps = 2, Ailerons = 2,  Elevators = 2

Micro servos:  2 x AW5213H

 Nose steering = 1,Front  gear doors = 1



Viper 3.4M Scale Servo Packs

Standard servos:  9x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Front gear doors = 1, Elevators = 2, Nose steering = 1



Viper 2.3M Scale Servo Packs

Standard servos:  8x AW5405BLS

Rudder = 1, Flaps = 2, Ailerons = 2, Elevators = 2, Nose steering = 1



Viper 2.0M Scale Servo Packs

Standard servos:  9x AW5405BLS

Rudder =1, Flaps = 2, Ailerons = 2, Landing gear doors = 2, Elevators = 2

Mini servos:  2x AW5312HV

Nose steering = 1,Front gear doors = 1



Viper 1.8M Premium  Servo Packs

Standard servos:  4x AW5405BLS

 Flaps = 2, Ailerons = 2

Mini servos:  4x AW5312HV

Nose steering = 1,Rudder =1,Elevators = 2





T-45 1/6 1.9M Scale Servo Packs

Standard servos:  1x AW5405BLS

Elevators = 1

Mini servos:  5x AW5312HV

Rudder = 1, Flaps = 2, Ailerons = 2

Micro servos:  7x M5213H  (Already Installed in ARF Pro Wired T-45)

Nose steering = 1, Speed brakes = 2, Landing gear doors = 4
