Designed as a perfect first jet trainer or just your everyday worry free easy to handle acrobatic jet. Easily repairable wooden design with a simple well known build method and simple gear, just drop equipment in and go fly!
New stronger fuselage with carbon infused wood construction.
| Model: | Dolphin V2 |
| Wingspan: | 72″ (1,850mm) |
| Length: | 71″ (1,800mm) |
| Wing area: | 972 “² (6,270 cm²) |
| Weight: | 16.7lbs (7.6kg) |
Updated fuselage, now carbon infused for even greater added strength

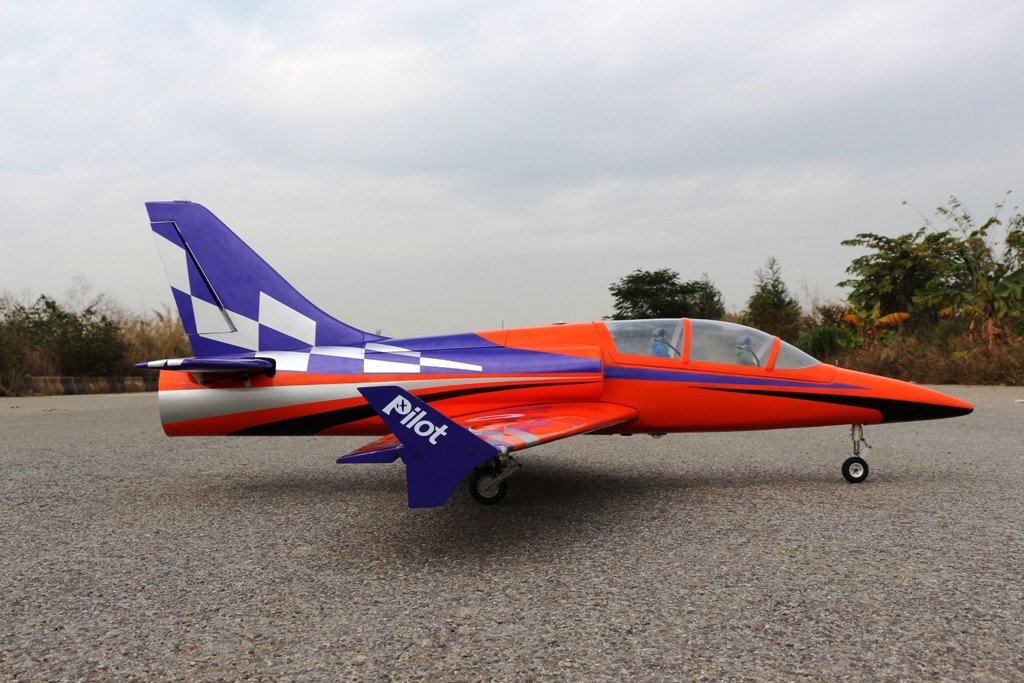

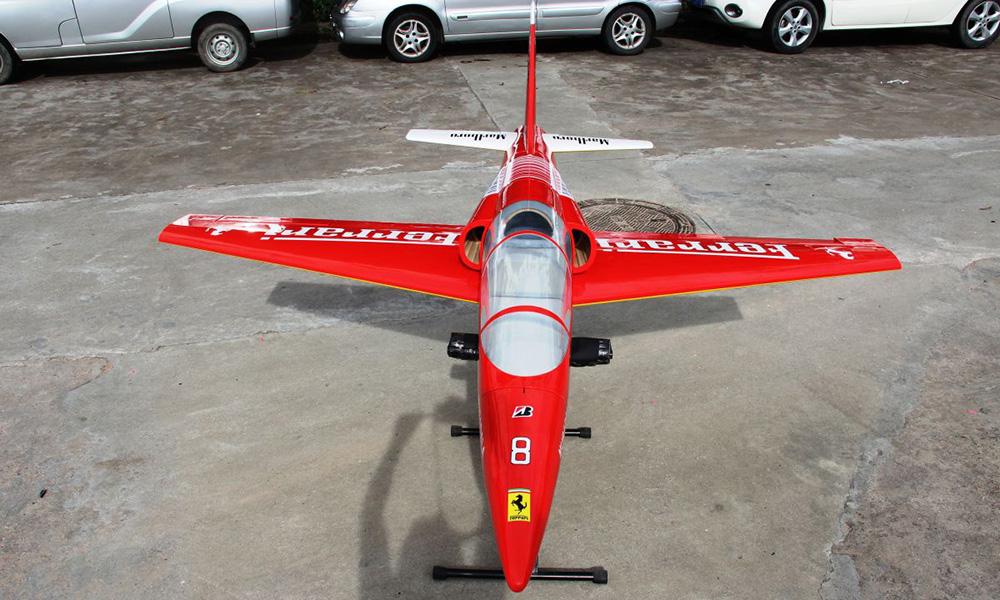

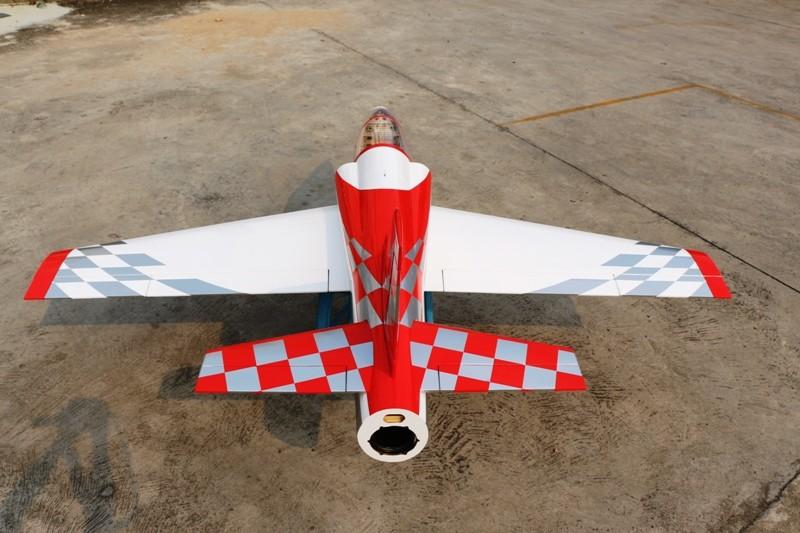

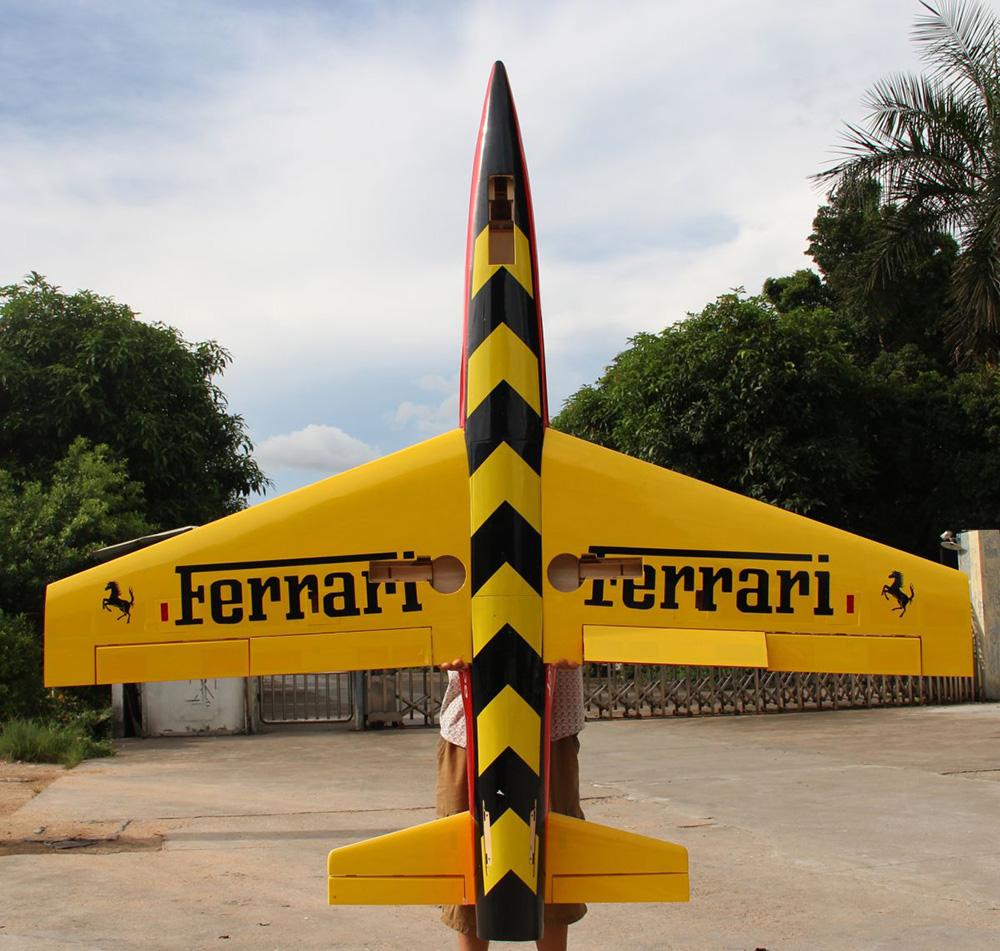

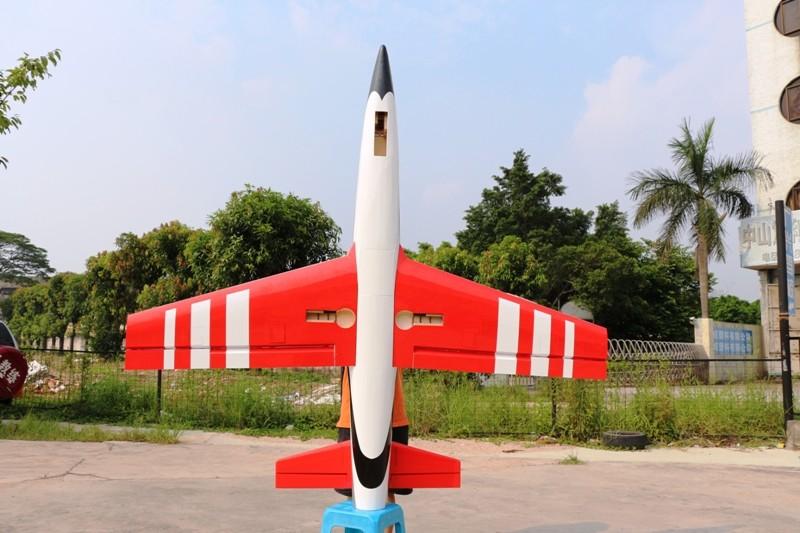

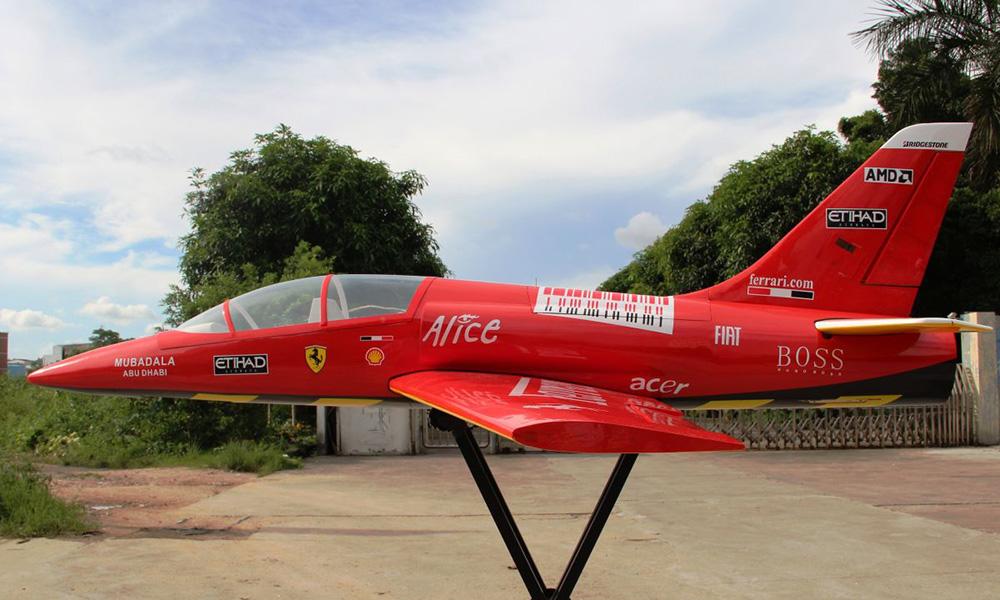

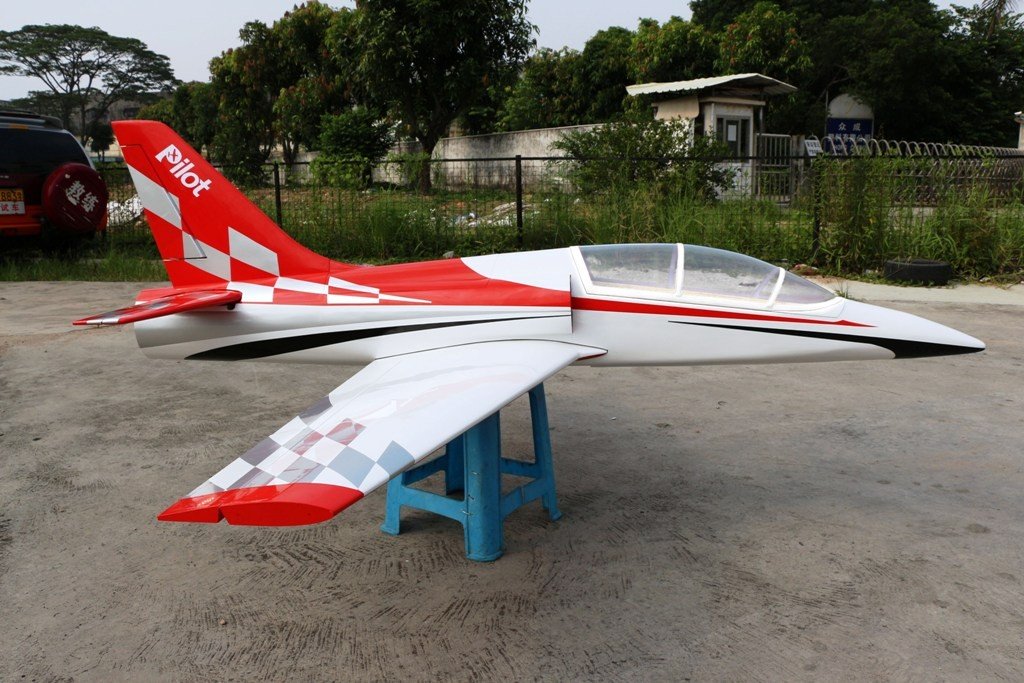

Flying shots
*Cockpit floor and pilot not included
Also available: Turbine Ready version. Includes all the above, plus x8 Pilot-RC servos and servo extension leads, all pre-installed. Just add your own turbine of choice.
Turbine: 60N
Servos: 8 // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
| Surface | Travel each way |
| Aileron | 25mm |
| Elevator | 20mm |
| Rudder | 48mm |
| Flap 1 (take-off) | 33mm down |
| Flap 2 (landing) | 47mm down |
The Center of Gravity is 205mm from the front leading edge on the root of the wing.

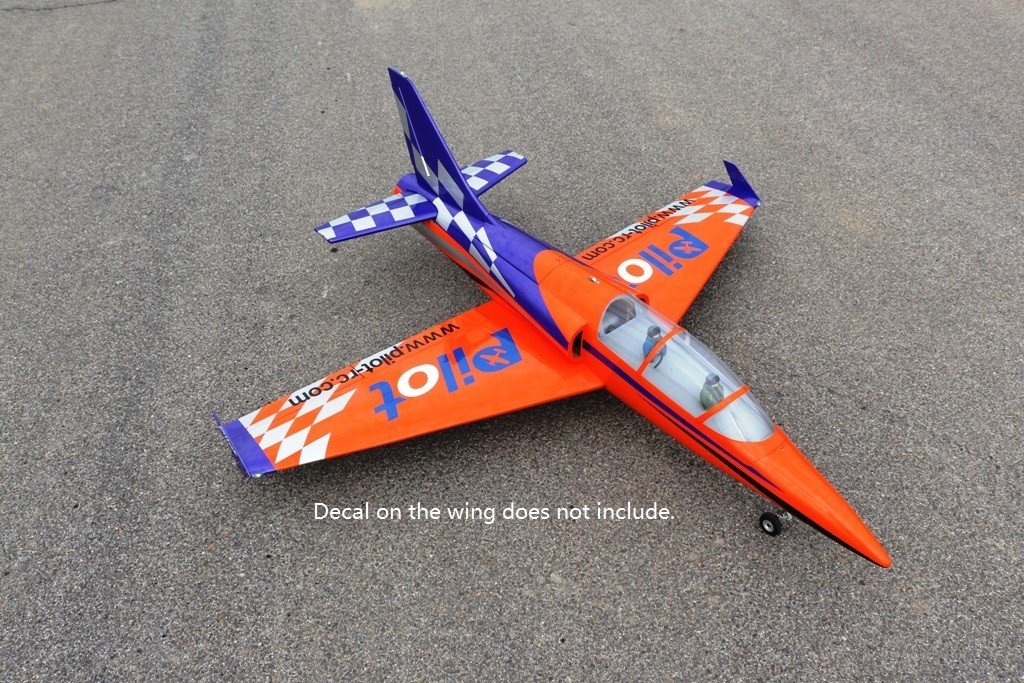

Colour scheme 04:
Colour scheme 08:
$150.00 FedEx ground shipping ( 48 states )
Lead time up to 14 to 16 weeks
Terms & Conditions
A 50% deposit is required to place an order. Once an order is placed, it may not be cancelled. • Balance in full is due upon completion.
Please contact us to place your order
Mike Lin Globaljetclub@gmail.com
Carrie Lau CarrieLau.Jet@gmail.com
Ralph Salgado Ralph@ralphsalgado.com
Collections: Pilot-RC
Category: Dolphin, Pilot-RC, Turbine Jet
