The DSM 10 from Jeti is dual input redundant electronic switch designed to operate with included magnetic key. The advantage of an electronic switch is that it offers a virtual unlimited ON/OFF cycles, unlike mechanically operated switches. The redundant DSM 10 switch automatically monitors and switches between two power supplies (Rx Batteries) keeping your system operational.
For the first time ever, your models receiver system can be turned ON/OFF with a simple flip of the switch, wirelessly from the Jeti DC/DS transmitters. The R3/RSW receiver fully replaces Jeti Magnetic Switch which is widely used with Jeti Voltage Regulators as well as their Electronic Switches. Simply cut or unplug the existing switch (Install a Male JR type connector if needed), and connect your device to the #3 port of the R3/RSW receiver.
Final solution in redundancy and reliability from Jeti is here. The DSM 10 is designed for two independent 5-13V inputs and supports up to 10A continuous current or 20A burst current for your connected devices. This unit is most suitable for today's high-voltage servos, which you might be operating directly from a two-cell LiFe battery or similar Li-Poly battery pack. Please note that DSM 10 does not include a regulator, output voltage is equal to input voltage.

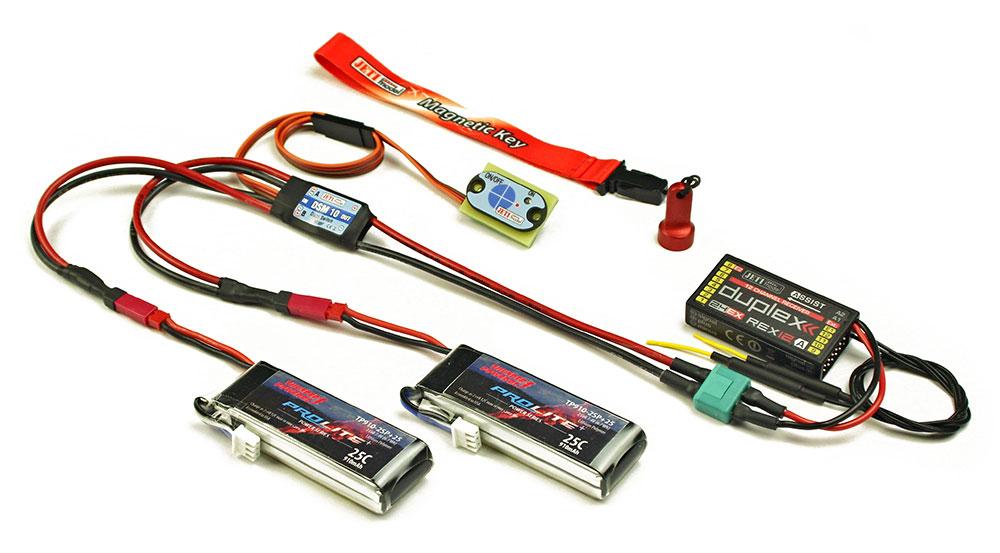

Screws and mounting-lugs are included to mount the device in your model as well as the magnetic key and face-plate. Decals are also included to allow the informative cover of the unit to be replicated on the outside of your model.
The faceplate contains an integrated LED to indicate the ON/OFF status of the switch. Should the battery become disconnected, the unit remembers its ON/OFF state i.e. if the unit is switched on and the battery is disconnected, the unit will remain ON when the battery is reconnected.
